Header file for core definitions and utility functions used in the YAWiiBBD project. More...

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <stdbool.h>
#include <sys/socket.h>
#include <bluetooth/bluetooth.h>
#include <bluetooth/l2cap.h>
#include <bluetooth/hci.h>
#include <bluetooth/hci_lib.h>
#include <pthread.h>
#include <ctype.h>

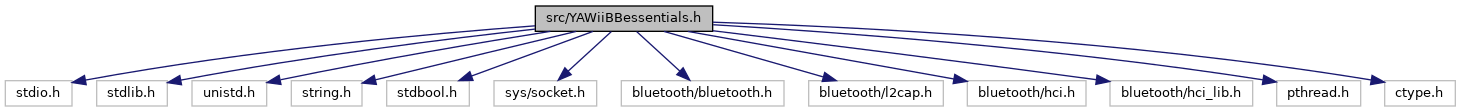

Include dependency graph for YAWiiBBessentials.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	WiiBalanceBoard
	Represents the Wii Balance Board connection and status. More...

Macros
#define	WII_BALANCE_BOARD_ADDR "00:23:CC:43:DC:C2"

#define	BUFFER_SIZE 24

Enumerations
enum	LogLevel { RAW , DECODE , DEBUG , VERBOSE }
	Specifies the level of detail for logging output. More...

Functions
void	print_info (const LogLevel is_debug_level, const char message, const unsigned char buffer, int length, const WiiBalanceBoard board)
	Logs messages with different verbosity levels, providing diagnostics and raw data output. More...

int	find_wii_balance_board (WiiBalanceBoard *board)
	Finds the Wii Balance Board by scanning nearby Bluetooth devices. More...

void	send_command (int sock, const unsigned char *command, int length)
	Sends a command to the Wii Balance Board over the control socket. More...

int	connect_l2cap (const char *bdaddr_str, uint16_t psm)
	Establishes a L2CAP connection with the Wii Balance Board. More...

void	process_received_data (int bytes_read, unsigned char buffer, WiiBalanceBoard board)
	Processes received data from the Wii Balance Board. More...

void *	threadFunction (void *arg)
	Thread function for monitoring user input to control the Wii Balance Board. More...

void	createThread (WiiBalanceBoard board, pthread_t threadId)
	Creates a new thread and starts the `threadFunction` to monitor user control. More...

int	is_valid_mac (int argc, char *argv[])
	Validates a given MAC address for format and content. More...

void	handle_status (WiiBalanceBoard *board)
	Processes sending a status command to the Wii Balance Board. More...

void	handle_calibration (WiiBalanceBoard *board)
	Processes sending a calibration command to the Wii Balance Board. More...

void	handle_led_on (WiiBalanceBoard *board)
	Processes sending an LED on command to the Wii Balance Board. More...

void	handle_activation (WiiBalanceBoard *board)
	Processes sending an activation command to the Wii Balance Board. More...

void	handle_data_dump (WiiBalanceBoard *board)
	Processes sending a data dump command (continous report of readings) to the Wii Balance Board. More...

void	process_calibration_data (int bytes_read, unsigned char buffer, WiiBalanceBoard *board)
	Processes the calibration data from the Wii Balance Board. More...

uint16_t	bytes_to_int_big_endian (const unsigned char buffer, size_t position, int max)
	Converts two consecutive bytes in the buffer from Big-Endian representation to a decimal integer. More...

uint16_t	calc_mass (const WiiBalanceBoard *board, uint16_t raw, int pos)
	Calculates the weight in grams from the raw data of the Wii Balance Board. More...

void	print_calibration_data (const WiiBalanceBoard *board)
	Displays the stored calibration data. More...

Variables
const LogLevel	debug_level
	Default logging level for output verbosity, dependent on compilation mode. More...

unsigned char	buffer [BUFFER_SIZE]
	Buffer for storing responses from the Wii Balance Board. More...

const unsigned char	status_command []

const unsigned char	activate_command []

const unsigned char	calibration_command []

const unsigned char	led_on_command []

const unsigned char	data_dump_command []

Detailed Description

Header file for core definitions and utility functions used in the YAWiiBBD project.

This header file provides essential definitions, data structures, and function declarations that support core functionality for the YAWiiBBD (Yet Another Wii Balance Board Driver) project. It serves as a foundational component, defining the main interfaces and constants required for interacting with a Wii Balance Board over Bluetooth.

Key Components

Data Structures: Contains the primary data structures for representing the state and configuration of the Wii Balance Board, including fields for sensor data, calibration parameters, and device status.
Constants and Macros: Defines constants, macros, and flag values used throughout the project to standardize operations, such as status flags and timing parameters.
Utility Functions: Declares utility functions for tasks like initializing the board, processing sensor data, and managing connection status. These functions are designed to be called within the main application loop and support modular expansion.

Essential vs. Extended Functionality

Originally, the project aimed to split core (essentials) and extended (extended) functionality across separate files. However, as an intermediate programmer, I encountered challenges in managing memory access violations when handling this separation. After considerable testing, I integrated the extended functionality directly within YAWiiBBessentials.h, within an EXTENDED section, for stability and to simplify memory management.

This integrated approach ensures that both core and additional features operate seamlessly, although it may require restructuring in the future if modularity is prioritized or memory handling becomes more robust.

Dependencies

This file depends on the bluez library for Bluetooth communication, which provides the essential functions and structures required to connect and interact with the Wii Balance Board. Ensure the following libraries are available and correctly linked:

bluez (Bluetooth library for Linux, required for L2CAP connections)
Standard C libraries (e.g., stdlib.h, stdio.h, unistd.h) for basic operations and system-level interactions.

Usage Notes

This file should be included in any source files that need direct access to the core functionality of YAWiiBBD. By isolating these definitions and functions, YAWiiBBessentials.h promotes modularity and ensures that key components of the application can be maintained and extended independently.

Future Extensions

Stronger Use of Pointers: Future revisions could aim to reduce variable passing and further rely on pointers to optimize performance and minimize memory allocation issues. Currently, variable passing has been used where pointer implementation led to compilation errors or memory access issues, but transitioning to pointers where possible could simplify the function calls and improve runtime efficiency.
Modular Separation: Revisit the combined structure for essentials and extended functionality, separating them into distinct files once memory handling and stability are manageable, allowing for a clearer modular structure.

Macro Definition Documentation

◆ BUFFER_SIZE

#define BUFFER_SIZE 24

Buffer size for data reception - for the Wii Balance Board 24 byte is enough

◆ WII_BALANCE_BOARD_ADDR

#define WII_BALANCE_BOARD_ADDR "00:23:CC:43:DC:C2"

Default MAC address for the Wii Balance Board

Enumeration Type Documentation

◆ LogLevel

enum LogLevel

Specifies the level of detail for logging output.

This enumeration allows the user to choose between different verbosity levels when displaying information.

Enumerator
RAW	Outputs raw data as received without interpretation
DECODE	Outputs big endian converted value of two bytes, readings in gramm
DEBUG	Provides debugging information and readings in Kilo
VERBOSE	currently unused

Variable Documentation

◆ buffer

unsigned char buffer[BUFFER_SIZE]

extern

Buffer for storing responses from the Wii Balance Board.

This buffer holds incoming data from the Balance Board, with a fixed maximum length of bytes, as defined in BUFFER_SIZE

◆ debug_level

const LogLevel debug_level

extern

Default logging level for output verbosity, dependent on compilation mode.

The debug_level constant controls the verbosity of output logging for the Wii Balance Board.

When compiled without the YAWIIBB_EXTENDED flag, the logging level is set to the only available option RAW, limiting output to raw, uninterpreted data.
When compiled with the YAWIIBB_EXTENDED flag, the logging level defaults to DEBUG, allowing the selection between multiple verbosity levels (RAW, DECODE, DEBUG, and optionally VERBOSE).
